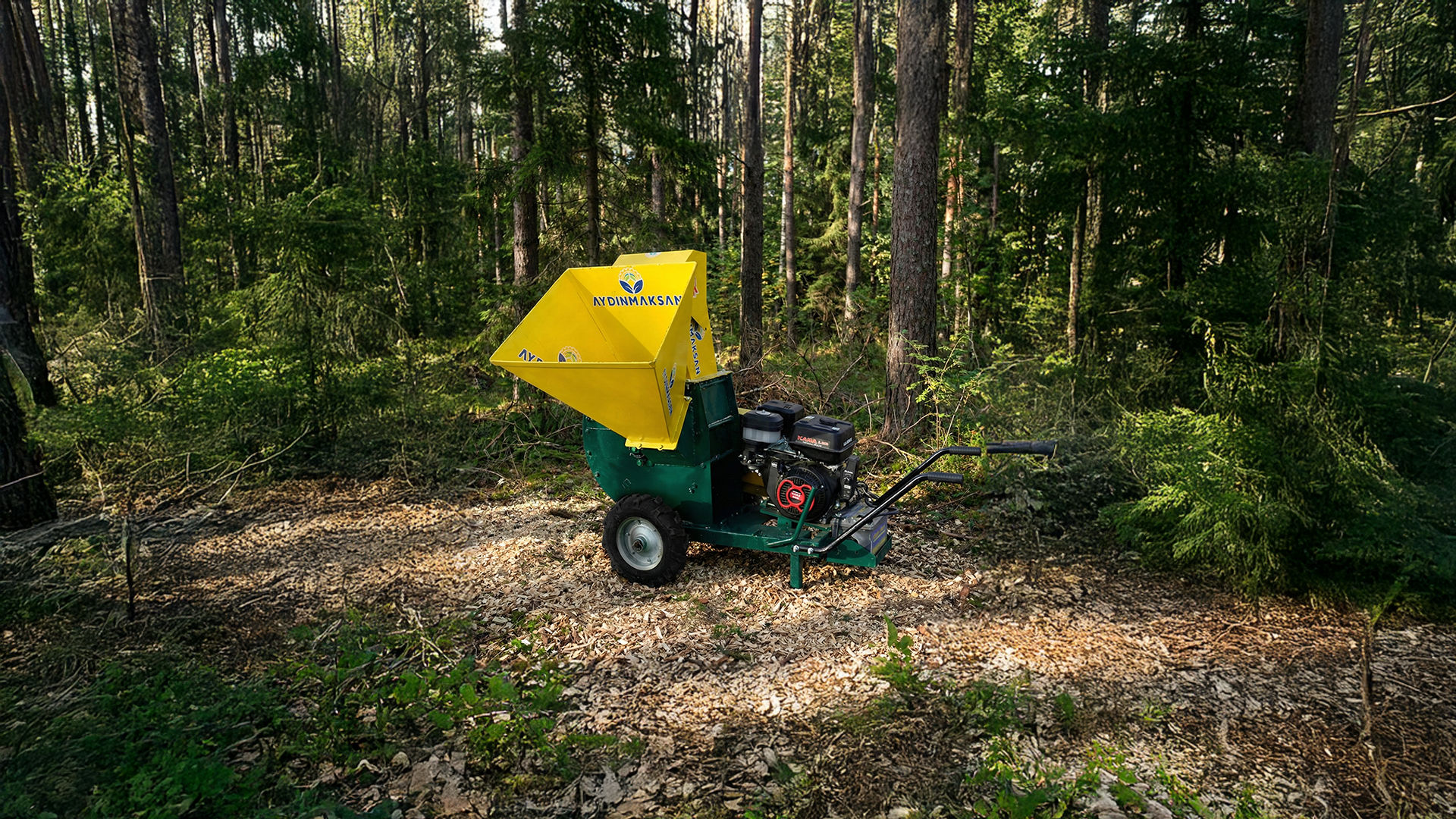

TM-510B
Depending on wood type and moisture content, the machine is capable of chipping branches up to 8 cm in diameter using its 3 high-precision cutting blades. Simultaneously, the integrated system featuring 32 hammer blades allows you to further process these chips into fine sawdust through its built-in sieve. The resulting sawdust can be utilized as solid fuel, for pellet production, as heating or bedding material in the poultry industry, or as an efficient energy source for pyrolysis boilers, fireplaces, stoves, and other heating systems.
Max. 8 cm
16 HP Recoil / Electric Start
4 Cutting Blades / 32 Shredding Blades
2 Years
Technical Specifications
Key data shaping your machine's performance
| Feature | Value |
|---|---|
| Model | TM-510B |
| Dimensions (W x L x H) | 134 x 125 x 150 cm |
| Weight | 280 Kg |
| Hourly Capacity | Max. Capacity: 500 kg/h |
| Feeding | Gravity-Fed / Self-Feeding |
| Hopper Width | (H)52 / (W)62 cm |
| Sieve Diameter | 10 mm |
| Tire Size | 4.00-8 Off-Road Tyre |
| Transport System | Front-Wheeled with Transport Handles |
| Accessories | Suction Port |
| Warranty Period | 2 Year Official Warranty |
GASOLINE ENGINE: 16 HP Power with Recoil / Electric Start.
Chipping Capacity: 8 cm
Number of Blades: 4 Cutting Blades / 32 Hammer Blades
Feeding System: Gravity-Fed / Self-Feeding for Effortless Operation.

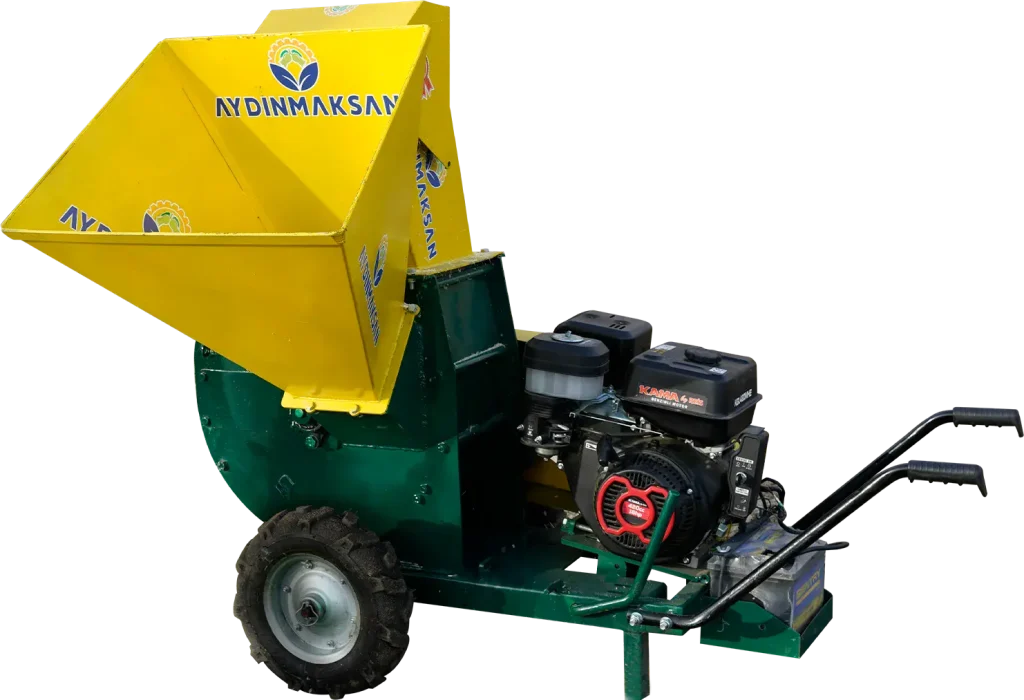

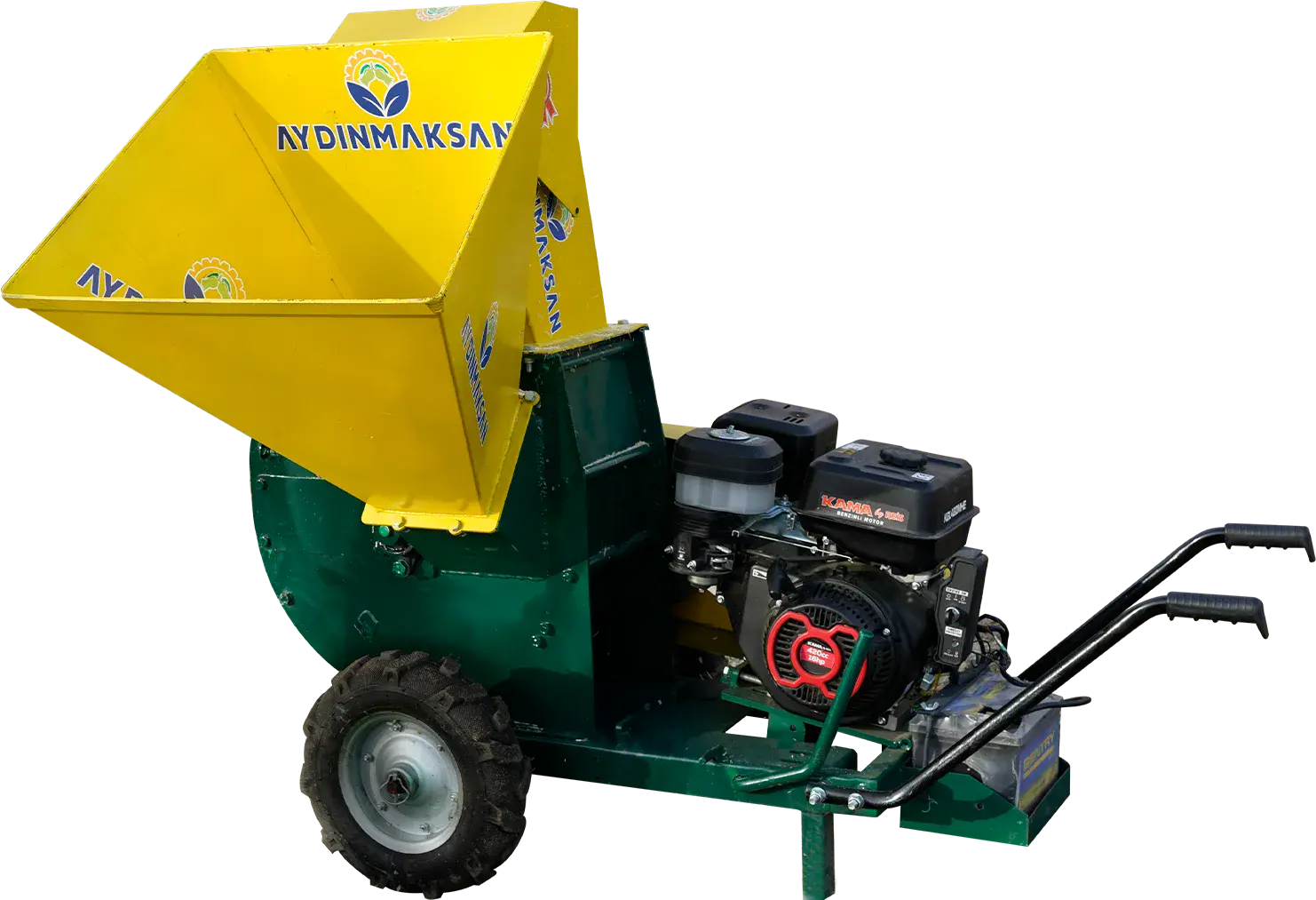

- The TM-510B Mobile Sawdust Machine is engineered for superior performance, powered by a robust 16 HP engine and a specialized design that effortlessly processes branches up to 8 cm in diameter. Featuring 4 precision blades crafted from premium Swedish steel and 32 hammer blades reinforced with Hardox wear-resistant steel, it delivers exceptional durability and high-efficiency grinding.
- The gravity-fed self-feeding system simplifies the process—all you need to do is drop the branches into the hopper. Equipped with an AYFORCE engine, supported by a widespread service network throughout Turkey, the machine comes with a 12-month engine warranty. The high-quality sawdust produced is a versatile resource, ideal for use as solid fuel, organic fertilizer, biomass energy, pellet production, or premium animal bedding.
- Perfectly suited for farmers and garden owners, the TM-510B combines a heavy-duty build with user-friendly operation for years of trouble-free performance. Additionally, the machine includes a specially designed transport handle as a complimentary gift to ensure maximum mobility.
TM-510B Video Gallery Titles
Discover your machine's field performance through our videos.
