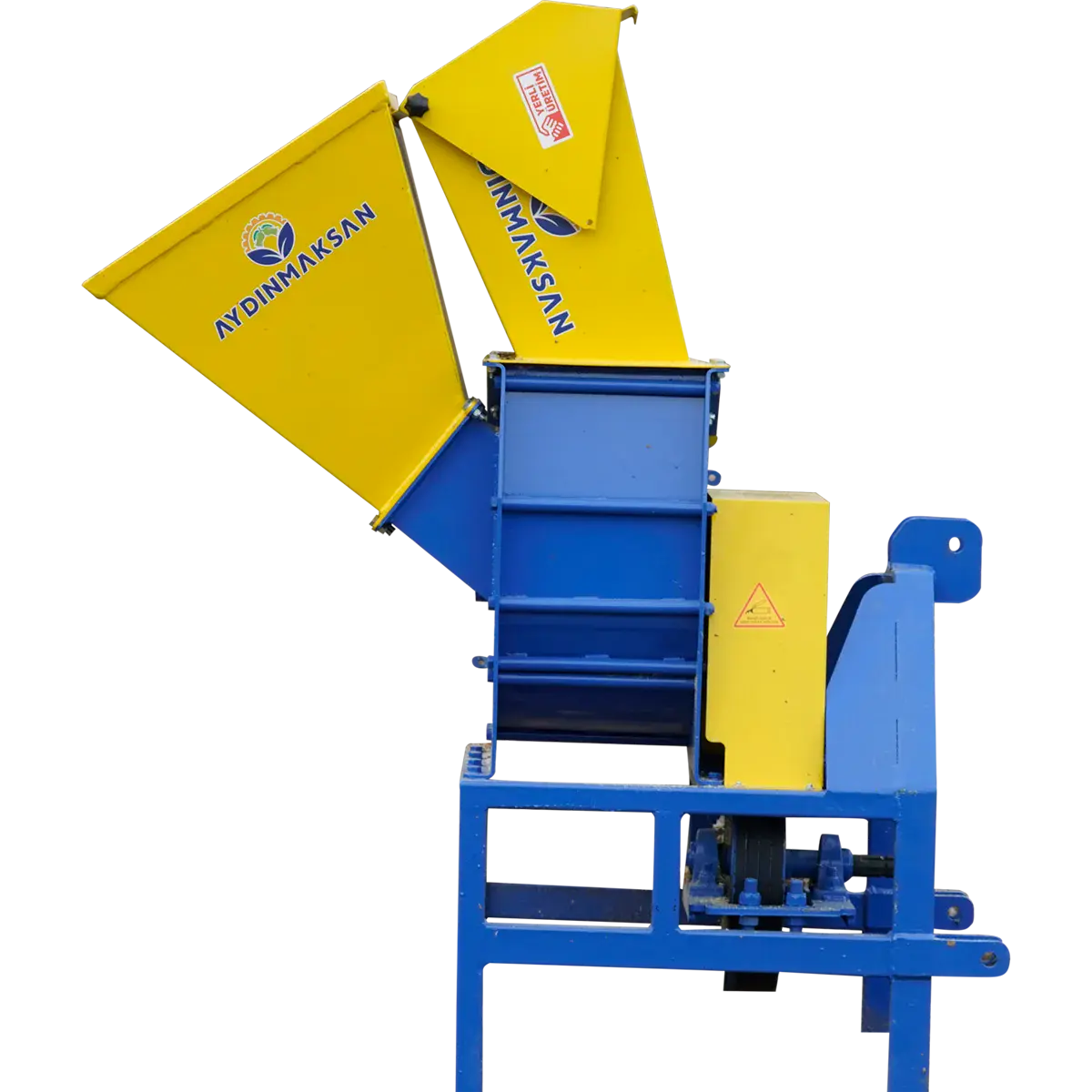

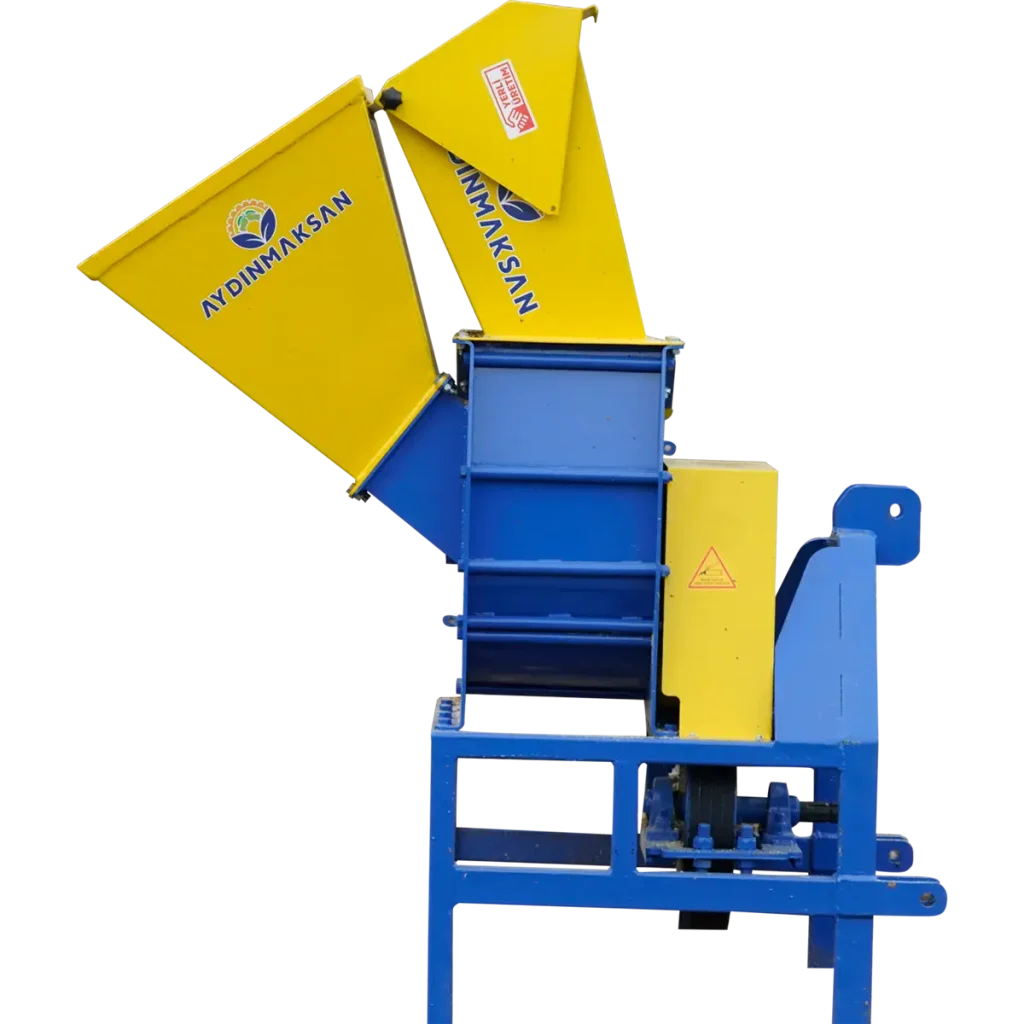

TM-510T
Depending on wood type and moisture content, the machine is capable of chipping branches up to 8 cm in diameter using its 4 high-precision cutting blades. Additionally, the integrated system featuring 32 hammer blades allows you to further process these chips into fine sawdust through its built-in sieve. The resulting sawdust can be utilized as solid fuel, for pellet production, as bedding or heating material in the poultry industry, or as an efficient energy source for pyrolysis boilers, fireplaces, stoves, and other heating systems.
Max. 8 cm
Min. 35 HP Tractor PTO Driven
4 Cutting Blades / 32 Hammer Blades
2 Years
Technical Specifications
Key data shaping your machine's performance
| Feature | Value |
|---|---|
| Model | TM-510T |
| Dimensions (W x L x H) | 95 x 160 x 150 cm |
| Weight | 250 Kg |
| Sieve Diameter | 10 mm |
| Hopper Width | (H)52 / (W)62 cm |
| Transport System | 3-Point Hitch System |
| Feeding | Gravity-Fed / Self-Feeding |
| Options | Suction Outlet / Suction Port |
| Warranty Period | 2 Year Official Warranty |
TRACTOR POWERED: Operates with a minimum tractor power of 35 HP.
Max. Chipping Capacity: 8 cm Diameter
Number of Blades: 4 Cutting Blades / 32 Hammer Blades
Feeding System: Gravity-Fed / Self-Feeding for Effortless Operation.
- The TM-510T is a high-performance sawdust machine equipped with blades crafted from premium Swedish steel and reinforced with Hardox wear-resistant steel components. Designed for heavy-duty use, it is compatible with tractors of 35 HP and above, effortlessly processing branches up to 8 cm in diameter.
- The resulting sawdust is ideal for a variety of applications, including solid fuel, pellet production, and animal bedding. Fully manufactured with domestic resources, the TM-510T is supported by a 24-month warranty and dedicated after-sales service. Rigorous quality control at every stage of production ensures a long-lasting and durable product life.
- The blades undergo high-frequency induction heat treatment and are precision-ground on all surfaces for superior cutting performance. Protected against corrosion by a high-quality powder coating, the machine is built to withstand the most demanding working conditions. Contributing to your energy independence, the TM-510T plays a significant role in waste management by transforming natural wood waste into an economical and eco-friendly energy source.
