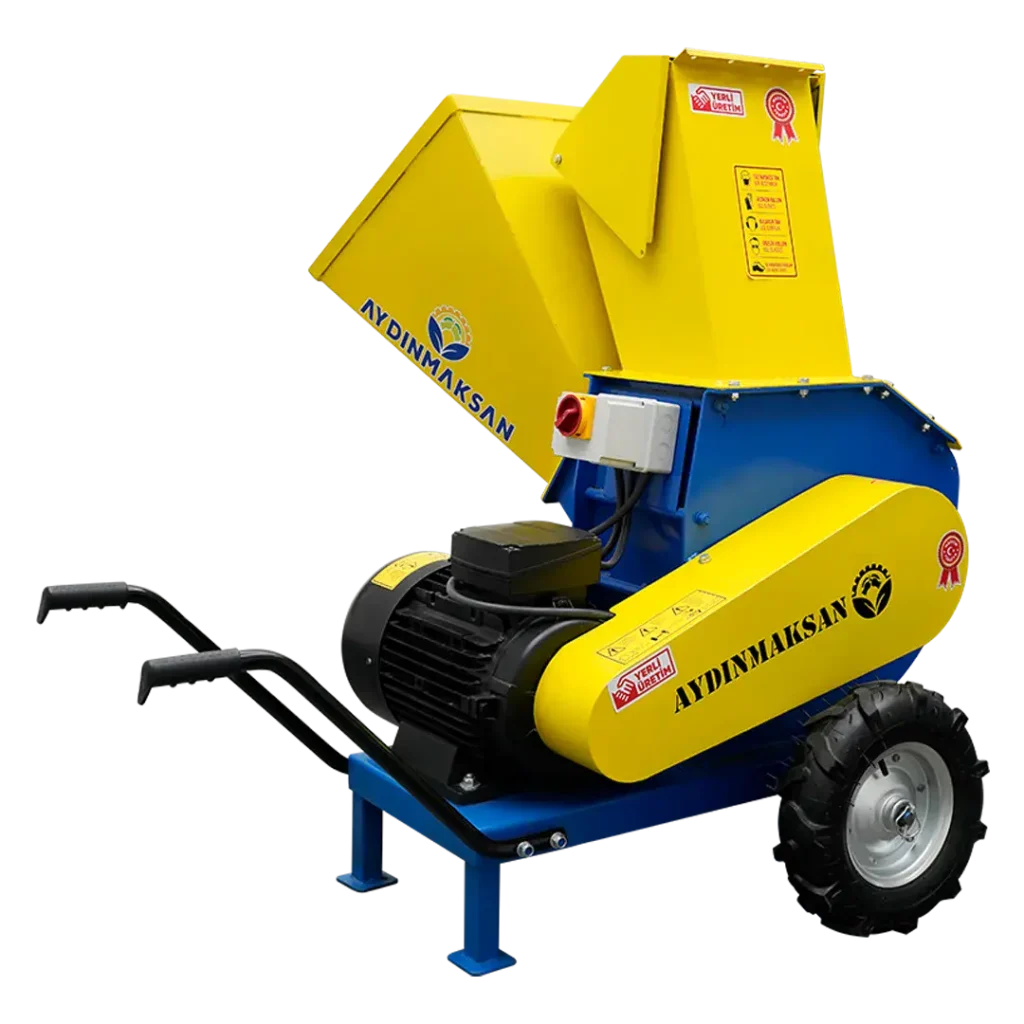

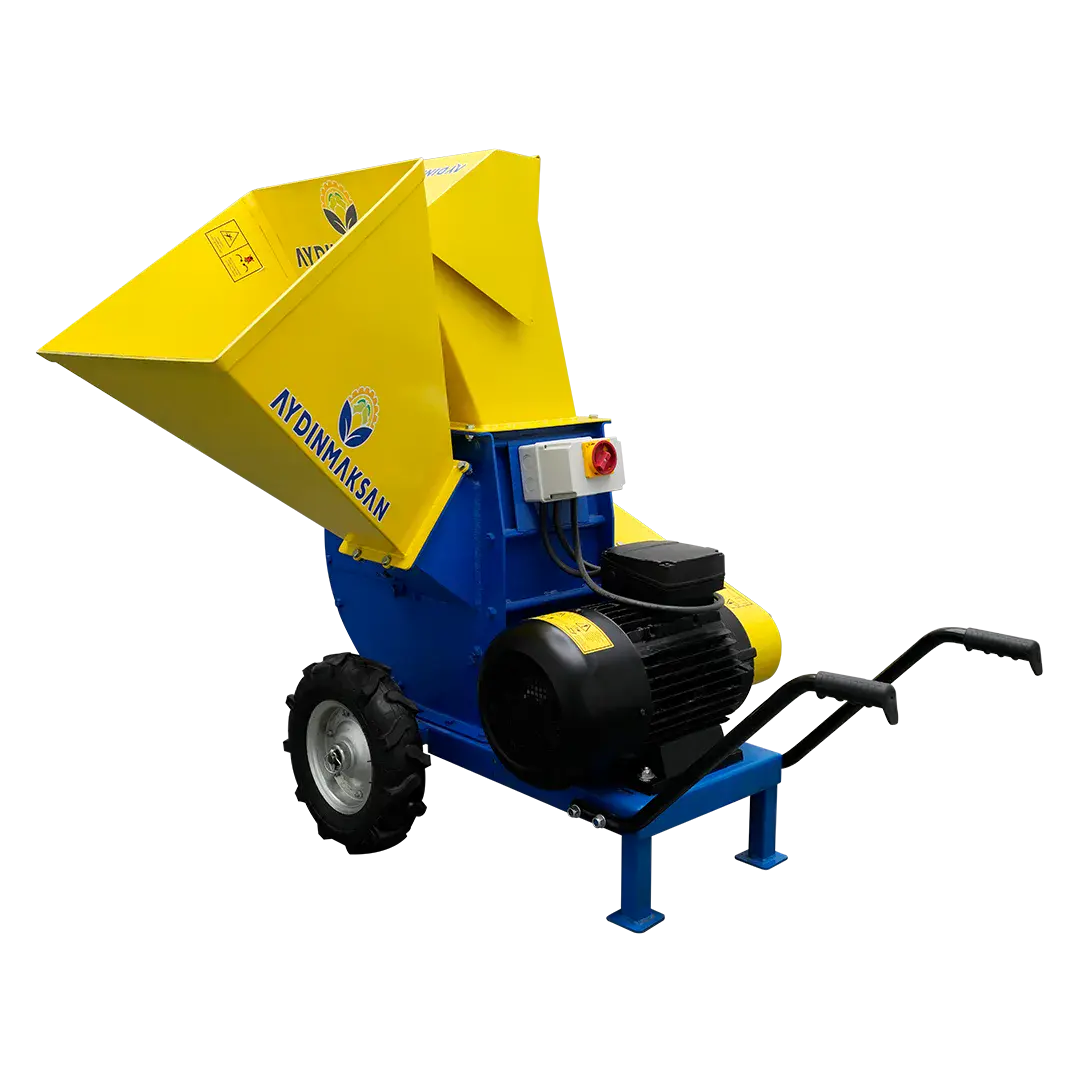

TM-510E
Depending on wood type and moisture content, the machine is capable of chipping branches up to 8 cm in diameter using its 4 high-precision shredding blades. Simultaneously, the integrated system featuring 32 hammer blades allows you to further process these chips into fine sawdust through its built-in sieve. The final output is ideal for use as solid fuel, pellet production, or as heating and bedding material in the poultry industry. Additionally, the processed material is highly suitable for use in fireplaces, stoves, pyrolysis boilers, and biomass power plants as a sustainable energy source.
Max. 8 cm
15 kW Three-Phase Electric Motor
4 Cutting Blades / 32 Hammer Blades
2 Years
Technical Specifications
Key data shaping your machine's performance
| Feature | Value |
|---|---|
| Model | TM-510E |
| Dimensions (W x L x H) | 134 x 105 x 150 cm (Including Transport Handles) |
| Weight | 285 Kg |
| Sieve Diameter | 10 mm |
| Hammer Blades | 32 Units |
| Tire Size | 4,00-8 Tire |
| Mobility System | Front-Wheeled with Transport Handles |
| Warranty Period | 2 Year Official Warranty |
ELECTRIC MOTOR: 15 kW Three-Phase Electric Motor.
Working Capacity: 8 cm Grinding Capacity.
Number of Blades: 4 Shredding Blades / 32 Hammer Blades
Feeding System: Gravity-Fed / Self-Feeding for Effortless Operation.
- Transform wood waste into a valuable resource with the TM-510E Professional Sawdust Machine!
- Engineered for high-capacity output, the TM-510E features 4 precision-ground primary shredding blades crafted from premium Swedish steel and 32 heavy-duty hammer blades reinforced with Hardox wear-resistant steel. This powerful combination effortlessly grinds branches up to 8 cm in diameter into a fine, consistent sawdust texture. Our blades undergo high-frequency induction heat treatment to ensure long-lasting durability and peak performance under demanding conditions.
- Powered by a robust 15 kW three-phase electric motor, the machine delivers consistent and effective grinding regardless of wood type or moisture levels. The high-quality sawdust produced is an ideal raw material for solid fuels, pellet production, biomass energy, and livestock heating systems. Manufactured entirely in our own facility, the TM-510E is finished with a durable powder coating for maximum corrosion resistance and longevity.
- We provide 7/24 support through our extensive service network across Turkey. The TM-510E comes with a comprehensive 24-month warranty and includes a specially designed transport handle as a complimentary gift for enhanced mobility.
