TDO-700T
Depending on the wood species and moisture content, the machine is capable of chipping branches up to 13 cm in diameter. The processed wood chips can be utilized as high-quality feedstock for solid fuel and pyrolysis boilers, fireplaces, stoves, and other heating appliances. Additionally, the chips serve as excellent organic mulch or natural fertilizer for agricultural and landscaping applications.
Max. 13 cm
Min. Required Tractor Power: 35 HP
3 Resharpenable Rotary Blades / 1 Resharpenable Static Blade.
2 Years
Technical Specifications
Key data shaping your machine's performance
| Feature | Value |
|---|---|
| Model | TDO-700T |
| Dimensions (W x L x H) | 122 x 195 x 165 cm |
| Weight | 625 Kg |
| Feeding | Feeding System: Hydraulic-Driven with Variable Speed Control. |
| Hopper Width | (H)65 / (W)90cm |
| Discharge System | Discharge System: 360° Swivel Foldable Chute (Height: 190 cm) |
| Transport System | Towing: Transport via Integrated Tow Hitch |
| Warranty Period | 2 Year Official Warranty |
Required Power: Min. 35 HP (Tractor PTO)
Chipping Capacity: 13 cm (130 mm)
Blade Configuration: 3 Resharpenable Rotary Blades / 1 Resharpenable Static Blade
Feeding System: Hydraulic-Driven with Variable Speed Control.
- Ultimate Mobility Meets Industrial Power: The Aydınmaksan TDO-700T.
- The TDO-700T is a high-capacity, mobile wood chipper engineered for tractors with 35 HP and above. Distinct from standard models, the “T” series features a heavy-duty wheeled chassis and a tow bar, allowing for effortless transportation across diverse terrains. Equipped with premium induction-hardened Swedish steel blades, it easily processes branches up to 13 cm in diameter.
- For those requiring peak efficiency, the optional TDO-700T NS (No Stress) model integrates an advanced hydraulic automation system. This technology increases the chipping capacity to an impressive 17 cm while preventing tractor engine strain by automatically regulating the feed rate. Delivering a high-volume output of 2–2.5 tons per hour, the TDO-700T transforms wood waste into valuable biomass for solid fuel boilers, fireplaces, or nutrient-rich compost.
- Operator control is maximized through the hydraulic-driven feeding system, featuring variable speed adjustment for different wood densities. The 360-degree swivel and foldable discharge chute allow for precise loading into any trailer or container. Built with a precision-ground, powder-coated frame and backed by a 2-year warranty, the TDO-700T is a 100% locally manufactured, eco-friendly solution for sustainable waste management.

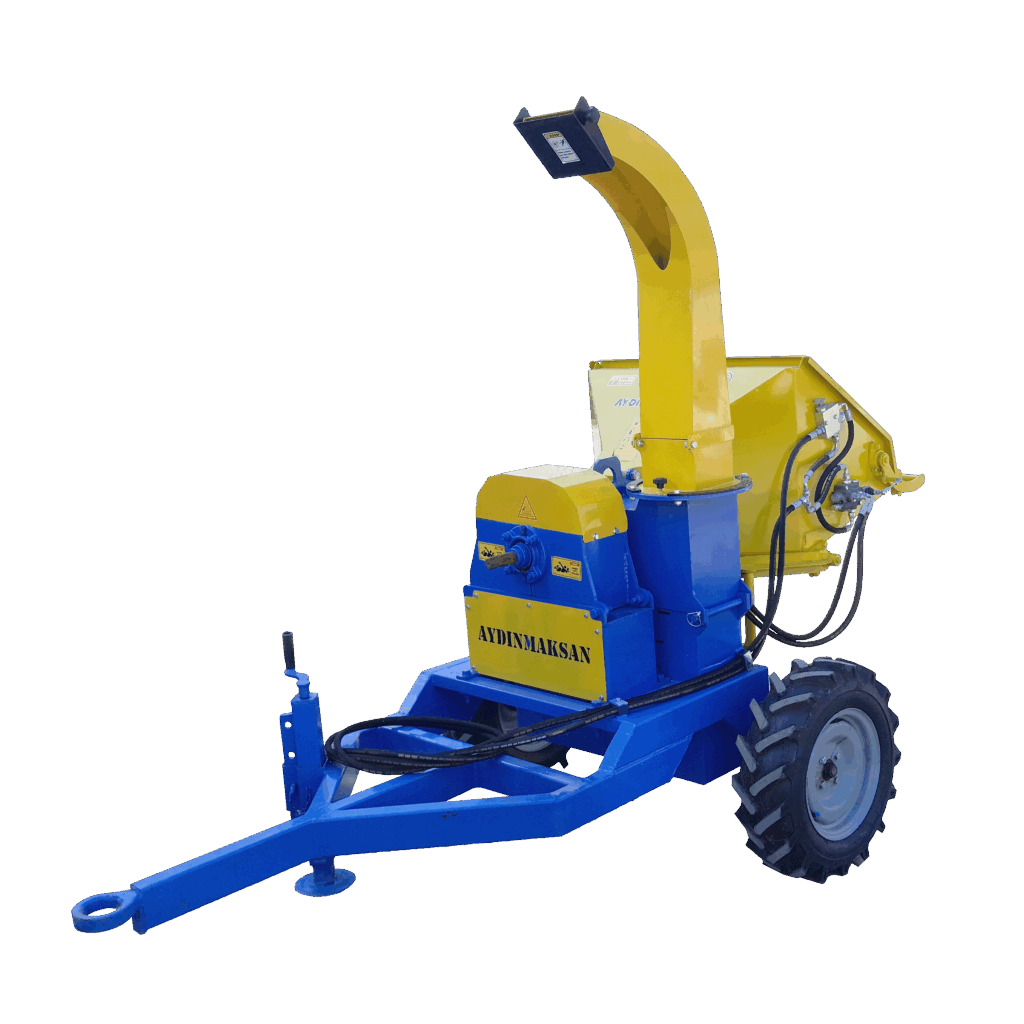

TDO-700T Mobile Wood Chipper
Discover your machine's field performance through our videos.
